Home > products > Rubber O Rings > Compression Molding 50 Shore A Silicone Sealing Ring For Travel Cup

Compression Molding 50 Shore A Silicone Sealing Ring For Travel Cup

Product Details

Place of Origin: China

Brand Name: OEM

Certification: SGS, ROHS,ISO

Model Number: OEM

Payment & Shipping Terms

Minimum Order Quantity: 2,000pcs

Price: USD, Negotiation

Packaging Details: PE+Carton

Delivery Time: within 7~15 work days

Payment Terms: T/T, L/C, Western Union,Paypal

Supply Ability: 500,000pcs/month

Get Best Price
Highlight:

Compression Molding Silicone Sealing Ring

,

Travel Cup Silicone Sealing Ring

,

50 Shore A Silicone O Rings

Material:
Food Grade Silicone Rubber
Color:
Transparent, Other Colors Are Ok
Technology:
Compression Molding
Size:
Customized
Usage:
Travel Cup
Hardness:
30~70 Shore A
Certificate:
ISO9001 & FDA, ROHS
Material:
Food Grade Silicone Rubber
Color:
Transparent, Other Colors Are Ok
Technology:
Compression Molding
Size:
Customized
Usage:
Travel Cup
Hardness:
30~70 Shore A
Certificate:
ISO9001 & FDA, ROHS
Compression Molding 50 Shore A Silicone Sealing Ring For Travel Cup
Custom travel cup silicone sealing ring, decorative silicone ring


Product Introduction

Food-grade silicone sealing ring is mainly used for crisper, rice cooker, water machine, lunch boxes, insulation boxes, incubator, water cup, oven, magnetizing cup, coffee pot, medicine and other supplies waterproof sealing and preservation, can be used in the electronic equipment industry, also can be used in the food industry, and even up to standards of silica gel seal can also be used for medical health industry.



Compression Molding 50 Shore A Silicone Sealing Ring For Travel Cup 0



Product Specifications



Advantages:

1. Heat resistance: Silica gel is much better than ordinary rubber in heat resistance, it can be used almost forever at 150, with no performance change, it can be used continuously for 10,000 hours at 200, and it can be used for a period of time at 350°.

2. It is widely used in heat resistant situations, such as thermostable handle of thermostable sealing ring of thermostable bottle ring and pressure cooker ring.Cold resistance: normal rubber is -20° to -30°, that is, silica gel has good elasticity when -60° to -70°. Some special formulations of silicone rubber can also withstand extremely low temperature, such as: low temperature sealing ring.Sealing: it has good sealing performance.

3. Aging resistance: no yellowing or fading after long-term use.

4. Safety: The raw materials are made of food-grade silica gel. The products are tasteless and do not deform and produce harmful substances at high temperature.

Disadvantages:

1. Poor tensile, tearing and mechanical properties.At room temperature, its physical and mechanical properties are not as good as most of the synthetic rubber (except for nitrile silicone, fluorosilicone rubber), low tensile strength, poor tear resistance, for the working environment in the presence of tensile, tear, strong wear situation is not recommended to use silicone sealing ring, usually only do static seal use.

2. It is not suitable for use under working pressure of more than 50psi.It is not recommended to use silicone seals in most concentrated solvents, oils, concentrated acids and diluted solutions of caustic soda.

3. Compared with other materials in terms of price, the manufacturing cost of silica gel sealing ring is relatively high.

There are two main international standard test FDA and LFGB for Food Grade Silicone. FDA-compliant means passing the Code of Federal Regulations, specifically CFR21.177.2600, CFR21.177.1210.



Product Pictures



There are three molding methods

1. Silicone Compression Molding

2. Liquid Silicone Injection Molding.

3. From Silicone Compression Molding switvh to Liquid Silicone Injection Moulding.

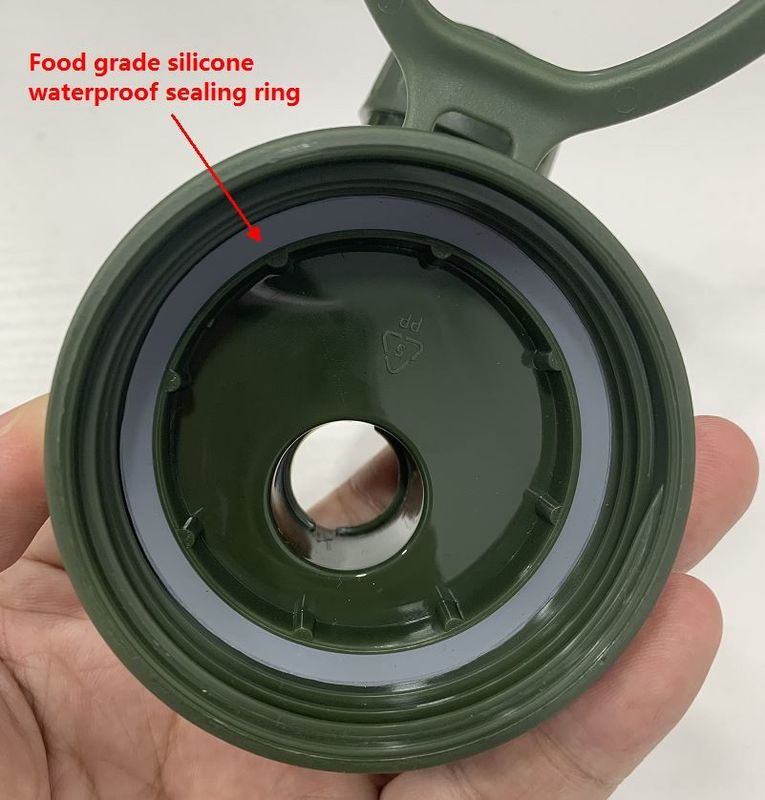

Compression Molding 50 Shore A Silicone Sealing Ring For Travel Cup 1

Compression Molding 50 Shore A Silicone Sealing Ring For Travel Cup 2





Application

Compression Molding 50 Shore A Silicone Sealing Ring For Travel Cup 3
