EMI Gasket Shielding Moulding Conductive Silicone Rubber

Product Details

Place of Origin: CHINA

Brand Name: OEM

Certification: SGS,ROHS,ISO

Model Number: OEM

Payment & Shipping Terms

Minimum Order Quantity: 2,000PCS

Price: USD,Negotiation

Packaging Details: PE+Carton

Delivery Time: 7~15 work days

Payment Terms: T/T, L/C, Western Union,Paypal

Supply Ability: 500,000pcs/month

Get Best Price
Highlight:

Moulding Conductive Silicone Rubber

,

65 Shore A Conductive Silicone Rubber

,

Moulding Electrically Conductive Silicone Rubber

Material:
Nickel Carbon / Glass Silver / Aluminum Silver
Hardness:
65 ±5 Shore A
Operating Temperature:
-50~160 ℃
Shape:
Customized Shape As Required
Certificate:
ISO 9001 / ROHS
Service:
OEM/ ODM/ Customized
Processing Service:
Moulding, Cutting
Size:
Customized
Material:
Nickel Carbon / Glass Silver / Aluminum Silver
Hardness:
65 ±5 Shore A
Operating Temperature:
-50~160 ℃
Shape:
Customized Shape As Required
Certificate:
ISO 9001 / ROHS
Service:
OEM/ ODM/ Customized
Processing Service:
Moulding, Cutting
Size:
Customized
EMI Gasket Shielding Moulding Conductive Silicone Rubber
Conductive Rubber,Conductive cap,Custom high-quality EMI gasket shielding electromagnetic conductive silicone rubber


Product Introduction



Conductive Rubber, is one kinds of elastomer, which conductive particles are well-dispersed in the elastomeric silicone rubber. Electrically conductive materials, such as carbon & graphite, silver, graphite nickel plating, siliver-plated aluminum, glass silvering. etc. Conductive Rubber & Electrically Conductive Silicone, as one kinds of EMI & RFI shielding materials, which used to reduce or eliminate the electromagnetic interference and radio frequency interference noise, widely used in electronics, medical device, aerospace, military and industrial fields.



Conductive Rubber Main Types & Kinds:



CONSIL-NC (graphite nickel plating filled in silicone rubber)
CONSIL-V (silver filling silicone rubber extrusion padding)
CONSIL-A silicone rubber (aluminum silver)
CONSIL-N (nickel plated silver filled in silicone rubber)
CONSIL-C silicone rubber (copper plating silver)

SC-CONSIL (graphite filled in silicone rubber)

CONSIL-R silicone rubber (fine silver)
CONSIL-II (silver filled in silicone rubber molded gasket)



Conductive Rubber Physical Properties & Material Date Sheet



Material Specification

Item Unit Standard ZH-3140 ZH-3150 ZH-3160 ZH-3170 ZH-3175 ZH-3180
Application / / Electrical Electrical Electrical Electrical Electrical Electrical
Appearance / / Black Black Black Black Black Black
Density g/cm² GB/T533-2008 1.14±0.03 1.16±0.03 1.18±0.03 1.20±0.03 1.22±0.03 1.24±0.03
Hardness Shore A GB/T531.1-2008 40±3 50±3 60±3 70±3 75±3 80±3
Tensile Strength ≥MPa GB/T528-1998 3.0 4.0 5.5 4.0 3.5 2.8
Elongation ≥% GB/T528-1998 360 330 300 270 210 180
Tear Strength ≥KN/m GB/T529-1998 7.0 8.0 7.5 7.0 6.0 5.0
Linear % GJB5873-2006 3.4~3.8 3.2~3.6 3.1~3.5 2.9~3.3 2.8~3.2 2.7~3.3
Resistence ≥% GB/T1681-2009 44 40 40 38 35 31
Surface Resistivity ≤Ω GB/T1410-2006 400 220 160 100 85 80
Plasticity / GB/T12828-2006 105±20 130±20 155±20 170±20 200±30 230±30







Super Conductive & Superconductive Silicone Rubber



Colour Tan
Density 3.5g/cm²
Hardness Range 30~80 Shore A (Standard 65 Shore A)
Volume Resistance <0.005Ω.cm
Tear Strength 2.0MPa
Elongation at break 100%
Compression Set (-72 hours at 100℃) <25%
Temperature Resistance -55℃~160℃



Product Pictures

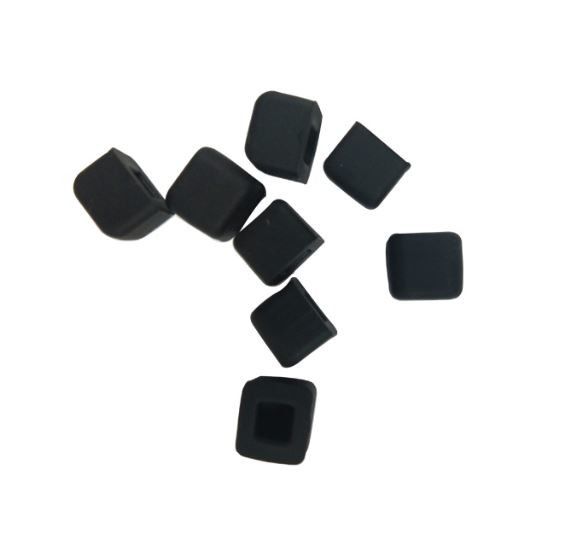

EMI Gasket Shielding Moulding Conductive Silicone Rubber 0

Conductive Rubber Forming:

Compression Molded

Die Cutting

Extruding Molded

LSR Injection Molding



Conductive Rubber Main Molded Components:

Conductive Rubber Sheets

Conductive Washer & Pad

Conductive Rubber Tubing

Backed Adhesive Conductive Washer & Sealing Gasket

Conductive Rubber Keyboard & Buttons



Conductive Rubber Volume Resistance



EMI Gasket Shielding Moulding Conductive Silicone Rubber 1

Conductive rubber EMI shielding Efficiency



EMI Gasket Shielding Moulding Conductive Silicone Rubber 2



Conductive rubber Heat Recesistance



EMI Gasket Shielding Moulding Conductive Silicone Rubber 3

We are a professional manufacturer of silicone rubber products, has more than 15 years of experience in silicone rubber processing, the factory passed the ISO9001 international quality system certification, has the precision mold design and manufacturing technology, can be customized for you all kinds of rubber conductive cap, silicone conductive tip, silicone rubber keypads, seal rings, gaskets and other silicone products, please feel free to contact us for inquiry.
