Product Details
Place of Origin: Xiamen,China
Brand Name: OEM
Certification: ISO9001,RoHs,SGS
Model Number: OEM
Payment & Shipping Terms
Minimum Order Quantity: 2,000pcs
Price: USD0.6~1.5/pc
Packaging Details: PE + Carton
Delivery Time: With in 7~15 Days
Payment Terms: T/T, L/C, Western Union,Paypal
Supply Ability: 500,000Pcs/Month
Application: |
Remote Controller,Home Appliance,Electric Toy |
Color: |
Pantone Color |
Material: |
100% Silicone |
Size: |
Customized Size |
Feature: |
Durable,waterproof,Non-toxic,no-noise,Soft |
Packaging: |
Standard Exportation Packing,According To Customer Requirement |
Certification: |
ISO9001,RoHs,SGS |
Type: |
Compression Moulding Forming |
Exported To: |
America, Europe, Southeast Asia |
Hardness: |
20~70 Shore A |
Process: |
Oil Pressure,printing,spraying,laser Engraving |
Application: |
Remote Controller,Home Appliance,Electric Toy |
Color: |
Pantone Color |
Material: |
100% Silicone |
Size: |
Customized Size |
Feature: |
Durable,waterproof,Non-toxic,no-noise,Soft |
Packaging: |
Standard Exportation Packing,According To Customer Requirement |
Certification: |
ISO9001,RoHs,SGS |
Type: |
Compression Moulding Forming |
Exported To: |
America, Europe, Southeast Asia |
Hardness: |
20~70 Shore A |
Process: |
Oil Pressure,printing,spraying,laser Engraving |

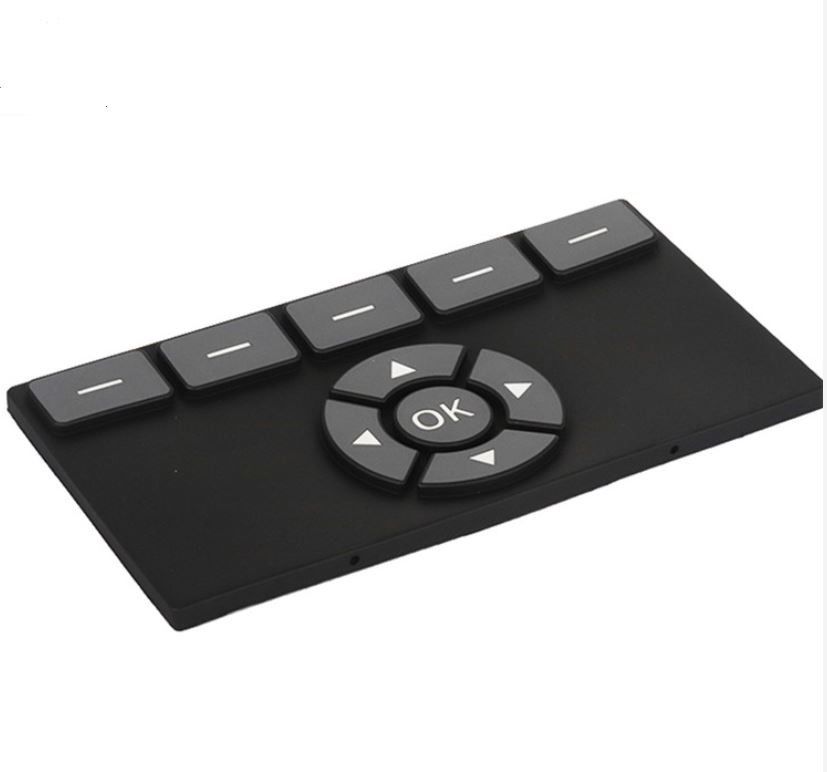

Customized Game Toy Conductive Silicone Button Children's Car Conductive Silicone Keyboard
Product Introduction
Silicone rubber buttons, keyboards and elastic buttons (also called silicone rubber pads or rubber buttons) are elastic switch components made of transparent and translucent silicone materials, through a molding process or LSR injection process. Because of its low cost, good tactility, and reliable switch performance, it is widely used in many fields such as electronic communications, POS terminals, remote controls, medical equipment, gaming equipment, smart homes, and mechanical electronics.
Product Specifications
| Carbon pill | conductive ink printing | Metal domes | Metal conductive pill | |
| Life time | Above 10 millions | Above 10 millions | Above 10 millions | Above 10 millions |
| Resistance | 10~100 Ω | 50~350 Ω | 1~100 Ω | 1~100 Ω |
| Diameter | 1.5~8mm | Available | Available | Available |
| Thickness | 0.2~0.6mm | 10~20 Microns | 0.05~0.1mm | 0.05~2mm |
| Advantage | Lower resistance stable life time | Any shape is available | Lower resistance | Lower resistance |
| Disadvantage | Shape limited | Resistance limited | Bad tactile feel without dust free functions | Low production efficiency high unit price |
Product Pictures
Silicone Rubber Buttons without conductive pills, which also called button cover or button cap,as a switches keyboard cover,also have dust proof and decorative effects.
Silicone Buttons with conductive pills and buttons webbing,which also called silicone buttons pads & silicone keypads,not only as button cover,but also as a switch & on-off.
When we press the button, the carbon particles in the conductive carbon pellets will be squeezed together, and the current will be connected and conducted through the conductive carbon pellets.The resistance of black carbon pills is usually between 100 and 150 ohms, but the resistance can be reduced to 10 ohms by adding more gold powder.
We are a professional manufacturer of silicone rubber products, advanced equipment, mature technology, keyboard can be used in a variety of processes, to meet the needs of different customers, the surface technology can be used: screen printing, laser engraving, embossing, epoxy dripping, spraying and so on.The style, size and LOGO can be customized according to your requirements.We can design and produce all kinds of high-quality keyboard keys according to customers' 2D/3D drawings.Please feel free to contact us and make an inquiry.
