Product Details
Place of Origin: China
Brand Name: OEM
Certification: SGS,RoHs, ISO9001
Model Number: Customized
Payment & Shipping Terms
Minimum Order Quantity: 2,000 pcs
Price: USD0.15~4.5
Packaging Details: PE+Carton
Delivery Time: within 7~15 days
Payment Terms: T/T, L/C, Western Union,Paypal
Supply Ability: 1,000,000 pcs/month
Application: |
Automotive,Consumer Electronics,Medical Equipments,Remote Controltoy,Test Instrument,Industry |
Color: |
Accoding To Your Design |
Material: |
Silicone/Rubber |
Size: |
Customized Size |
Printing: |
Screen Printing/Laser Etching |
Hardness: |
30~75 Shore A |
Packaging: |
Standard Exportation Packing |
Production: |
20 Years Experience |
Exported To: |
America ,Europe ,Southeast Asia |
Product Name: |
Epoxy Resin Drop Process Silicone Rubber Keys |
Feature: |
Water-proof.durable.Eco-friendly |
MOQ: |
2,000PCS |
Application: |
Automotive,Consumer Electronics,Medical Equipments,Remote Controltoy,Test Instrument,Industry |
Color: |
Accoding To Your Design |
Material: |
Silicone/Rubber |
Size: |
Customized Size |
Printing: |
Screen Printing/Laser Etching |
Hardness: |
30~75 Shore A |
Packaging: |
Standard Exportation Packing |
Production: |
20 Years Experience |
Exported To: |
America ,Europe ,Southeast Asia |
Product Name: |
Epoxy Resin Drop Process Silicone Rubber Keys |
Feature: |
Water-proof.durable.Eco-friendly |
MOQ: |
2,000PCS |
The sample delivery time is 2-7 days, and the product will be delivered within 15 days. The molding production time is calculated separately, and the monthly production capacity is more than 500,000 pieces.
Product Specifications

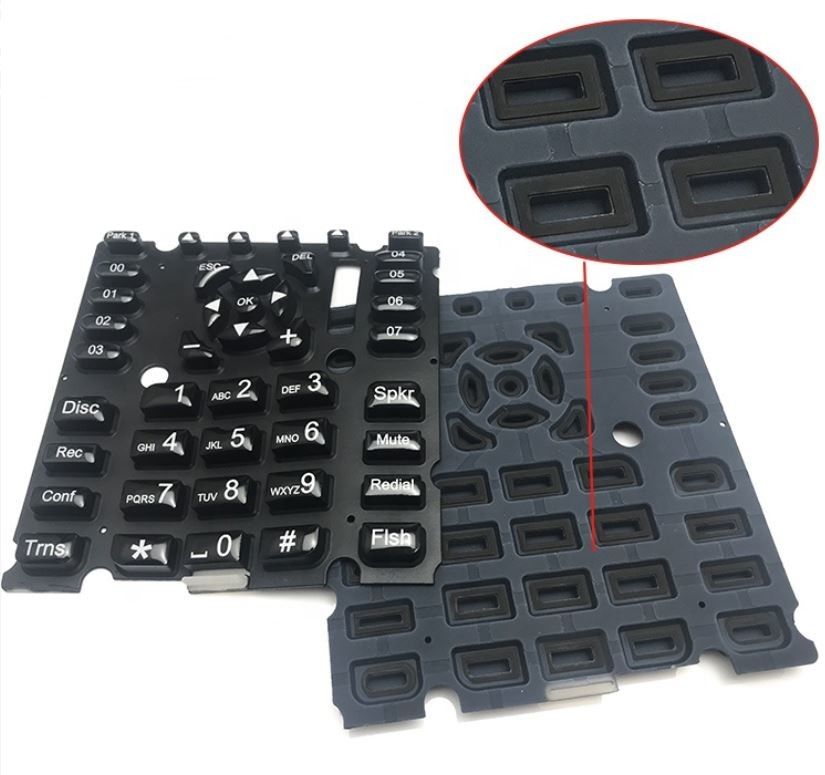

| Product Name | Epoxy resin drop process silicone rubber keys |
| Material | Eco-friendly harmless non-toxic non-corrosiveness silicone material |
| Accessories material | Metal Dome, 3M adhesive,Conductive Pill,Transmitting Material |
| color | As your design, Pantone Color |
| Size and shape | Customized |
| Logo |
According to your design. rich colors print logo embossed or debossed logo are available. Epoxy , laser caving , spray , silkscreen , etc . |
| Payment terms | 30% as deposit and balance before shipment by T/T |
| 3D/CAD drawing | Accept Stp, X_t,Pro/e,Solidwork,UG format |
| Hardness | 30~75 shore A |
| Operation temperature | -40℃~240 ℃ |
| Tensile strength | 1,500 PSI |
| Tear strength | 88 Ibs |
| Key stroke | 0.2~0.3mm (According customer's requiements) |
| Life expectance | 500,000~2,000,000 closures |
| Package | Bulking packing ( suitable units in a opp bag , then put in a carton ) |
| Delivery time | 7-15 work days after confirmed the sample |
| Shipping | via air or sea |
| Certification | SGS , ROHS , ISO9001,ISO14001 etc . |
| Usage | Automotive,Consumer Electronics,Medical Equipments,Remote controltoy,Test instrument,Industry |
Note: The design and production of silicone keyboard mold, not only from the driving force, key stroke, conductive mode and other silicone rubber keyboard structure to consider, but also to consider the choice of keyboard materials, surface paint, hardness differences.
Some customers pay more attention to the driving force of the silicone rubber keyboard than the overall performance of the keyboard.For example, silicone rubber keyboard mesh fabric uniformity, the impact of spraying, key coverage effect, keyboard and equipment integration, a good keyboard design, always want to consider more comprehensive.
Application fields of silicone rubber keys
Silicone rubber keys are widely used in almost all industries, such as walkie-talkie communication equipment, medical equipment, home appliances remote control, game consoles, POS cashier system, bank password, office equipment, automobiles, ships, aircraft, energy, electricity and so on.We can customize silicone rubber keys according to your design scheme, including color, shape and corresponding technical parameters.Feel free to contact us for enquiries.
Silicone Rubber Keypads Type:
1. Screen printing Keypad
The production of silk-screen keyboard
Silk Screen Printing Keypad Protection Method
In order to prevent the colorful symbols & Icons on the surface of silk screen printing keypad from wearing off, most printed silicone buttons need Matte Smoothing Coating,PU Coating, Epoxy Coating,Plastic Button Covers or Metal key cap for protection.
2. Rubber Color Spraying Keypads
Rubber Color Spraying Keypad,also called Color Coated Silicone Keyboaerd & Button,which is one of main silicone rubber keypads surface process.Silicone Rubber Keypads or plastic button cap surface is spraying coated with colorful layers for decoration or laser cutting, some is for LED light blocking.
If you need to add a well-designed silicone rubber keyboard to your design and product, please do not hesitate to contact us and make an inquiry, we will provide you with a full range of services.
