Product Details
Place of Origin: China
Brand Name: OEM
Certification: SGS,RoHs, ISO9001
Model Number: Customized
Payment & Shipping Terms
Minimum Order Quantity: 2,000 pcs
Price: USD0.45~2.5
Packaging Details: PE+Carton
Delivery Time: within 7~15 days
Payment Terms: T/T, L/C, Western Union,Paypal
Supply Ability: 1,000,000 pcs/month
Application: |
POS Terminal,Electronics,Medical,Remote Controltoy,househould Appliance |
Color: |
Accoding To Your Design |
Material: |
Silicone/Rubber |
Size: |
Customized Size |
Printing: |
Screen Printing/Laser Etching |
Hardness: |
20~80 Shore A |
Packaging: |
Standard Exportation Packing |
Production: |
20 Years Experience |
Exported To: |
America ,Europe ,Southeast Asia |
Product Name: |

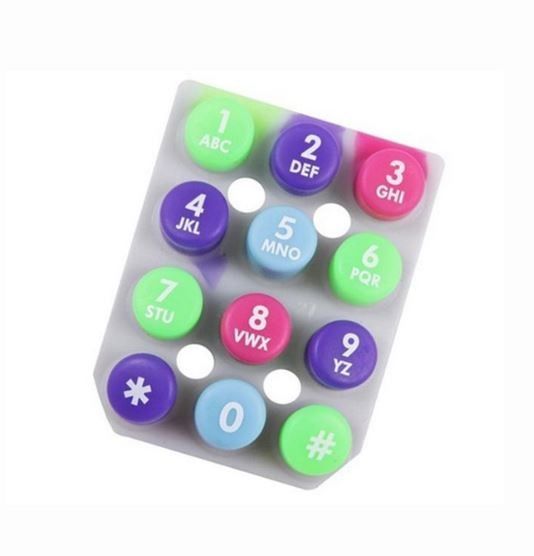

Silicone Rubber Keypad For Pos Terminal |
Feature: |
Water-proof.durable.Eco-friendly |
MOQ: |
2,000PCS |
Application: |
POS Terminal,Electronics,Medical,Remote Controltoy,househould Appliance |
Color: |
Accoding To Your Design |
Material: |
Silicone/Rubber |
Size: |
Customized Size |
Printing: |
Screen Printing/Laser Etching |
Hardness: |
20~80 Shore A |
Packaging: |
Standard Exportation Packing |
Production: |
20 Years Experience |
Exported To: |
America ,Europe ,Southeast Asia |
Product Name: |
Silicone Rubber Keypad For Pos Terminal |
Feature: |
Water-proof.durable.Eco-friendly |
MOQ: |
2,000PCS |
The sample delivery time is 2-7 days, and the product will be delivered within 15 days. The molding production time is calculated separately, and the monthly production capacity is more than 500,000 pieces.
Product Specifications
| Material | silicone rubber |
| Size/shape | according to the 3D or 2D technical drawing or sample |
| Logo | embossed and debossed printing, colorfull printing, customize |
| Color | as the pantone color |
| Actural force(N) | 1~4 |
| Contact resistance | <200Ω |
| Stroke (mm) | 1.0~3.0 |
| Hardness | 20A~70A |
| Usage temperature | -20℃~160℃ |
| Secondary processes | Printing, coating,laser etching,assembly |
| Characteristics |
oil-proof, acid-base, anti-wear, eco-friendly, abrasion resistance, soft flexible |
| Minimal customer input | 2D-drawing (dxf,pdf);3D-database(igb,step);artwork (eps;dxf) |
| Application | Remote controller,automobile,instrumentation,electronical equipment, meidical |
| Certificate | ROHS, SGS, ISO9001 |
| Lead time of mould | about 10 days |
| Lead time of products | 7~15 work days after confirmed the sample. |
The design and production of silicone keyboard mold, not only from the driving force, key stroke, conductive mode and other silicone rubber keyboard structure to consider, but also to consider the choice of keyboard materials, surface paint, hardness differences.
Some customers pay more attention to the driving force of the silicone rubber keyboard than the overall performance of the keyboard.For example, silicone rubber keyboard mesh fabric uniformity, the impact of spraying, key coverage effect, keyboard and equipment integration, a good keyboard design, always want to consider more comprehensive.
Silicone Rubber Keypads Type:
1. Screen printing Keypad
The production of silk-screen keyboard
Silk Screen Printing Keypad Protection Method
In order to prevent the colorful symbols & Icons on the surface of silk screen printing keypad from wearing off, most printed silicone buttons need Matte Smoothing Coating,PU Coating, Epoxy Coating,Plastic Button Covers or Metal key cap for protection.
2. Rubber Color Spraying Keypads
Rubber Color Spraying Keypad,also called Color Coated Silicone Keyboaerd & Button,which is one of main silicone rubber keypads surface process.Silicone Rubber Keypads or plastic button cap surface is spraying coated with colorful layers for decoration or laser cutting, some is for LED light blocking.
If you need to add a well-designed silicone rubber keyboard to your design and product, please do not hesitate to contact us and make an inquiry, we will provide you with a full range of services.
