Product Details
Place of Origin: Xiamen,China
Brand Name: OEM
Certification: ISO9001,Rohs,SGS
Model Number: Customized
Payment & Shipping Terms
Minimum Order Quantity: 5,000pcs
Price: USD, Negotiation
Packaging Details: PE + Carton
Delivery Time: With in 7~15 Days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 500,000Pcs/Month
Application: |
Mobile Terminal |
Color: |
Multy-color |
Material: |
Silicone/ Rubber |
Size: |
Customized Size |
Feature: |
Durable,waterproof,Non-toxic,no-noise,Soft |
Packaging: |
Standard Exportation Packing,According To Customer Requirement |
Character: |
Can Be Printed,debossed Or Embossed,Laser Cutting |
MOQ: |
5,000PCS |
Hardness: |
30~80 Shore A |
Application: |
Mobile Terminal |
Color: |
Multy-color |
Material: |
Silicone/ Rubber |
Size: |
Customized Size |
Feature: |
Durable,waterproof,Non-toxic,no-noise,Soft |
Packaging: |
Standard Exportation Packing,According To Customer Requirement |
Character: |
Can Be Printed,debossed Or Embossed,Laser Cutting |
MOQ: |
5,000PCS |
Hardness: |
30~80 Shore A |

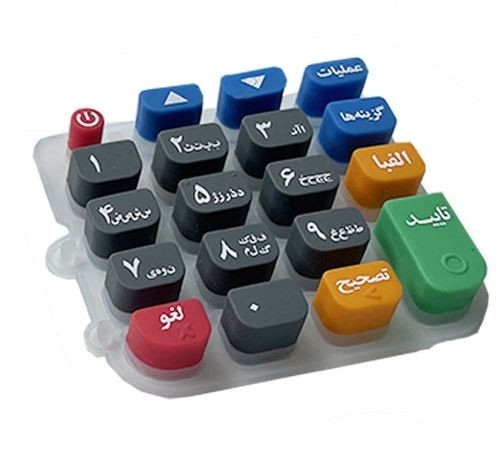

Customized mobile terminal silicone keys, multi-color silicone keypad
Product Introduction
Silicone rubber buttons, keyboards, and elastomeric buttons, also known as silicone pad or rubber buttons, are elastomeric switching assemblies made of transparent and translucent silicone materials that are injected through a die pressing process or LSR.As a reliable switch element, silicone buttons are widely used in automobile,electronic communication, POS terminals, remote controllers, medical devices, smart home and mechanical electronics and other fields.
Product Specifications
| Carbon pill | conductive ink printing | Metal domes | Metal conductive pill | |
| Life time | Above 10 millions | Above 10 millions | Above 10 millions | Above 10 millions |
| Resistance | 10~100 Ω | 50~350 Ω | 1~100 Ω | 1~100 Ω |
| Diameter | 1.5~8mm | Available | Available | Available |
| Thickness | 0.2~0.6mm | 10~20 Microns | 0.05~0.1mm | 0.05~2mm |
| Advantage | Lower resistance stable life time | Any shape is available | Lower resistance | Lower resistance |
| Disadvantage | Shape limited | Resistance limited | Bad tactile feel without dust free functions | Low production efficiency high unit price |
Product Name: Silicone Buttons for Mobile Terminals
Process description: molding-processing-printing-quality inspection-packaging-shipment
Development cycle: 2-3 days for sample molds, 5-7 days for production molds Customization cycle: 2-5 to provide structural samples, 5-7 to provide finished samples
Bulk cargo production capacity: 5000-8000PCS/day
Process introduction: Multi-color molding, plastic injection, back screen printing, over-color screen printing, surface spraying, Laser engraving, chromatic masking spray, PU protection oil spray, UV protection oil spray, and glue.
Several commonly used surface technology
The surface treatment processes of silicone rubber keys usually include: PU coating, matte process, epoxy resin dripping process, plastic key caps and spraying feel oil. Spraying feel oil is cheaper than PU coating.
Silicone Rubber Buttons without conductive pills, which also called button cover or button cap,as a switches keyboard cover,also have dust proof and decorative effects.
Silicone Buttons with conductive pills and buttons webbing,which also called silicone buttons pads & silicone keypads,not only as button cover,but also as a switch & on-off.
When we press the button, the carbon particles in the conductive carbon pellets will be squeezed together, and the current will be connected and conducted through the conductive carbon pellets.The resistance of black carbon pills is usually between 100 and 150 ohms, but the resistance can be reduced to 10 ohms by adding more gold powder.
We are a professional manufacturer of silicone rubber products, advanced equipment, mature technology, keyboard can be used in a variety of processes, to meet the needs of different customers, the surface technology can be used: screen printing, laser engraving, embossing, epoxy dripping, spraying and so on.The style, size and LOGO can be customized according to your requirements.We can design and produce all kinds of high-quality keyboard keys according to customers' 2D/3D drawings.Please feel free to contact us and make an inquiry.
