Product Details:
|
| Type: | Membrane Keypad | Application: | Home Appliance,industry |
|---|---|---|---|
| Working Current: | ≤ 100mA | Thickness: | 0.7~1.5 Mm |
| Size And Shape: | According To Customer's Drawing | MOQ: | 5,000PCS |
| Highlight: | Switching Instrument Panel Touch Film,Custom Industrial Flexible Film |
||
Product Introduction

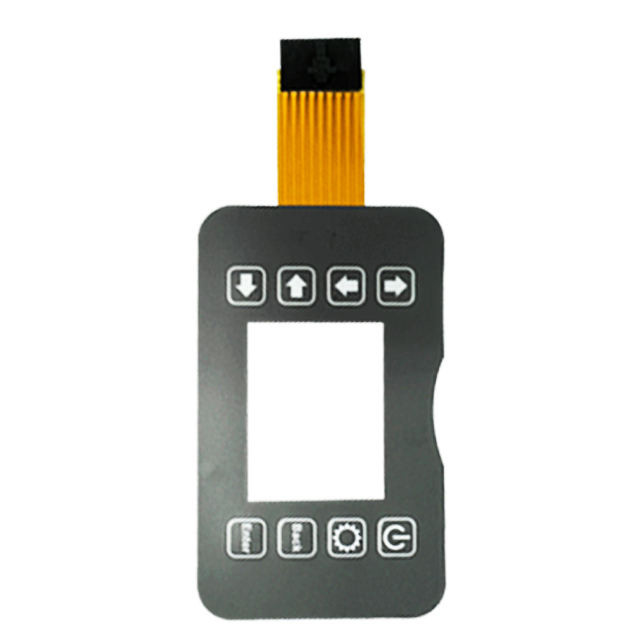

A flexible thin film switch, also known as a membrane switch, is a touch-sensitive electronic device that is widely used in a variety of applications. It is made of several layers of materials, including a flexible substrate, conductive elements, and an overlay.
The flexible substrate is typically made of polyester or polycarbonate, and serves as the base layer for the switch. It can be custom-designed to meet specific requirements in terms of size, shape and functionality.
The conductive elements are made of materials such as silver ink or carbon ink, and are applied onto the substrate using a printing process. These elements form the electrical circuitry that allows the switch to function.
The overlay layer is typically made of a protective material, such as polyester or polycarbonate film, that is printed with graphics or labeling. It serves to protect the switch elements from environmental factors such as moisture, dust, and abrasion, while also providing visual indication and feedback to the user.
| Membrane switch design | |
| Material | PET(polyester),PC(polycarbonate) |
| Dimension | According to customer's demand,OEM service |
| Color | Pantone and RALcolor matching system. |
| Rear Adhesive | 3M467,3M468,3M9448 etc. |
| Features | 1)with metal dome, |
| 2)Key:embossed or flat | |
| 3)screen printing | |
| 4)with clear or transparent window | |
| 5)glossy surface or matte surface | |
| 6)Standard Tolerances:+/- 0.10inch(+/-0.25mm) | |
| Best service + best price+best quality | |
Flexible thin film switches are suitable for a wide range of applications, from consumer electronics and medical devices, to industrial control systems and automotive applications. They are preferred for their versatility, reliability, and adaptability to complex design requirements.
One of the key advantages of flexible thin film switches is their ability to be designed and customized to meet specific needs. This allows for a high degree of precision and accuracy in terms of the switch's properties, such as its responsiveness, tactile feedback, and actuation force.
Flexible thin film switches are also highly durable, with a long lifespan and resistance to wear and tear. They can withstand high temperatures, humidity, and harsh environmental conditions, making them ideal for use in challenging applications.
Overall, flexible thin film switches offer a highly reliable, versatile, and customizable solution for electronic interface needs, making them a popular choice in a variety of industries and applications.
FAQ
1. Are you a manufacturer or trading agent?
We are a experienced manufacturer and we also have a professional overseas sales team to serve our customers all over the world.
2. Can you offer samples?
(1)Stock Samples: If you paid the freight cost, we can provide free samples for you.
(2)Customized Samples: We will offer you 5 pcs free samples after we receive the set up cost.
3. What is the delivery time?
(1)Customized sample: About 7 to 10 days.
(2)Mass production: About 2--3 weeks
4. Is the prototype necessary?
Yes. Most of the items are customized orders,so the prototype will be sent to customer for approval.
